InviZible® C-Micro® Thermostatic Tankless Water Heater with 0.20 GPM Activation

Model CM Series with Z-S1616D

Installation Instructions

Manual Z Series Wall Sleeve (pdf)

Submittal

Submittal Z Series Cabinet with CM Water Heater

Model CM Series with Z-S1616D

InviZible® C-Micro® Thermostatic Tankless Water Heater with 0.20 GPM Activation

Vandal resistant – keeps your Chronomite heater protected

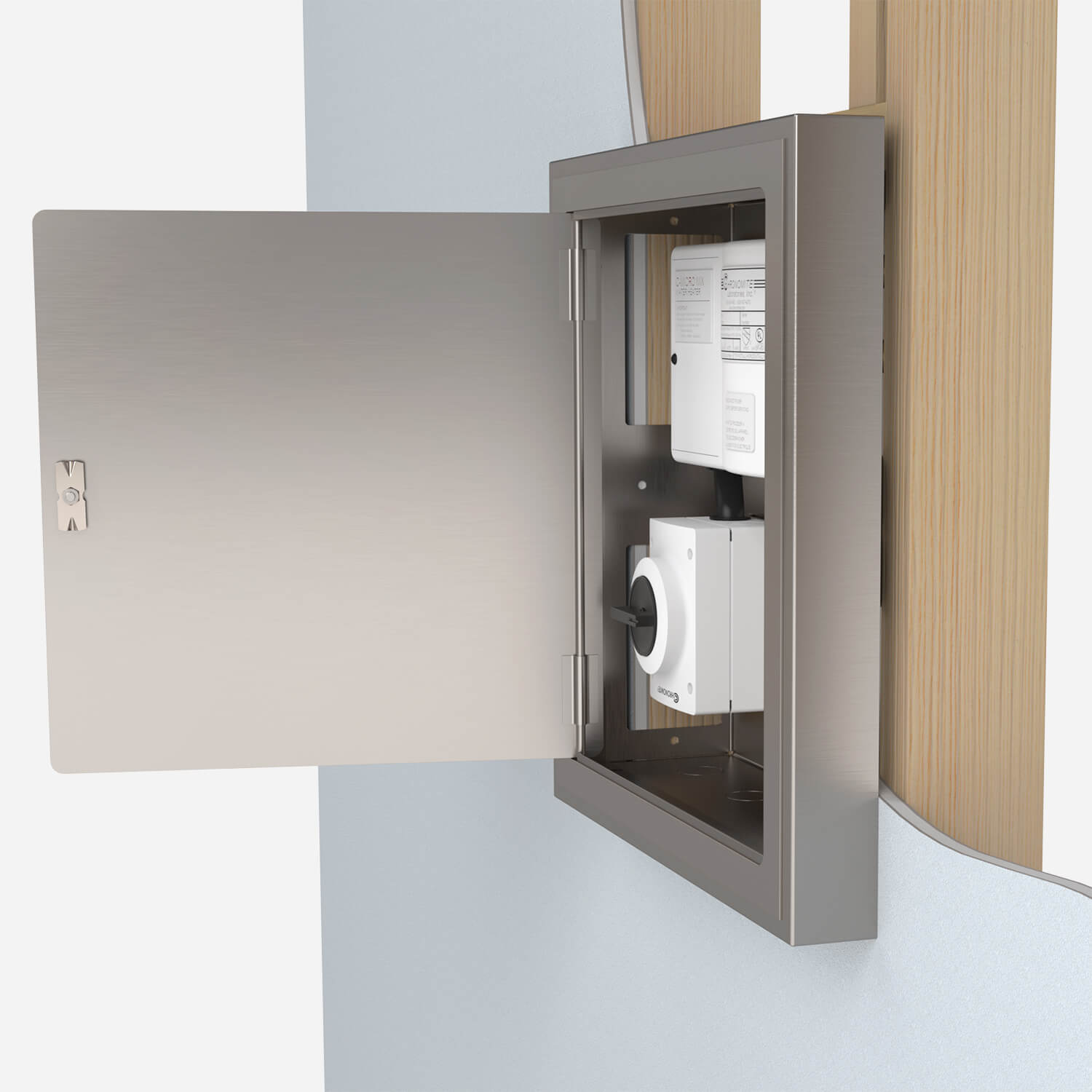

Aesthetics – blends into the wall
Function – easy access
Prefabricated – prewired disconnect switch

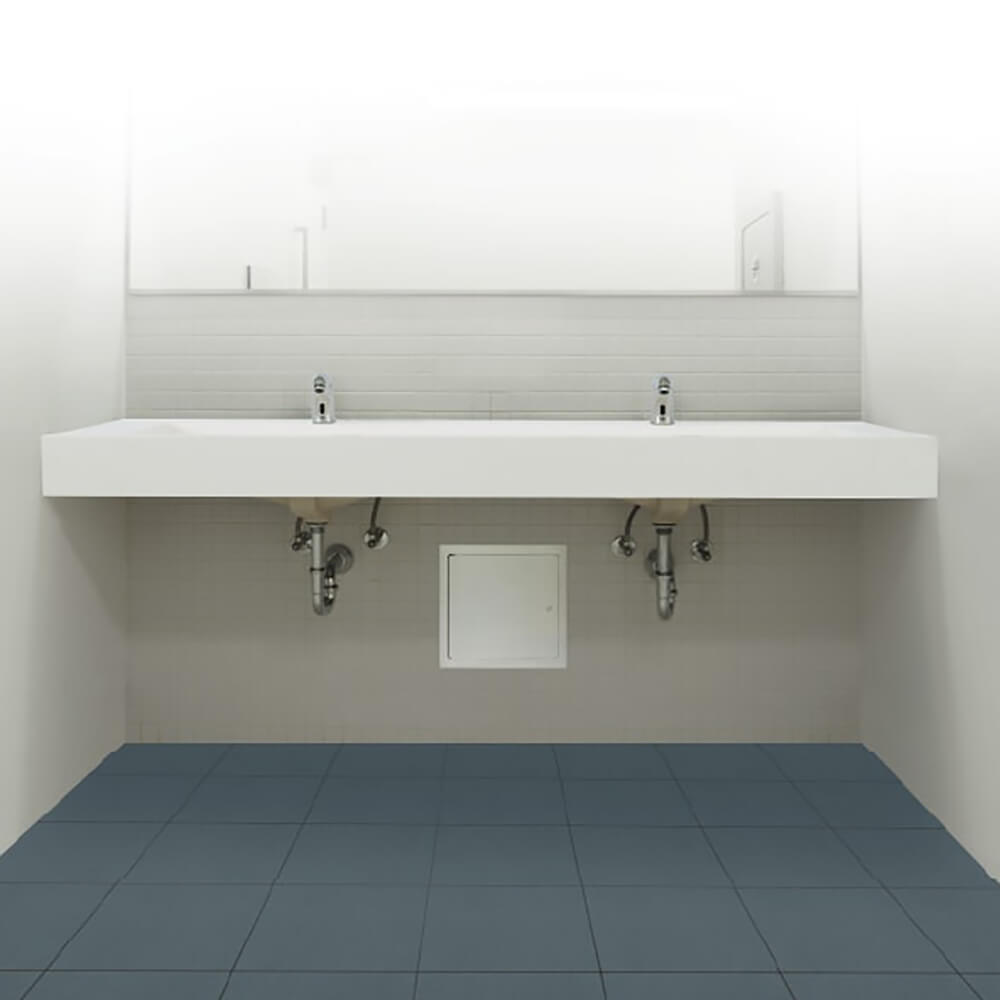

Concealed – ADA code compliant
0.2 gallon (0.75 liter) activation
Unlimited hot water
99% energy efficient
Maintains consistent water temperature with digital microprocessor technology
Meets CAL GREEN and LEED v4 low flow requirements
Meets ADA, UL, UPC and IAPMO, ETL.
Eliminates scalding – preset factory temperature 104° to 160°F (40° to 71°C) with no mixing valve required
Made in America

Chassis is ideally suited for new installations or for remodeling in masonry, tile, wood or other wall surfaces.

Available and Ready to Ship! Fill out this form to start an order or get more information.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	Answers	File Size
Installation Instructions	Manual Z Series Wall Sleeve (pdf)	Chronomite Invizible® Water Heater Wall Sleeve - Installation and Operation Instructions		504 KB
Submittals	Submittal Z Series Cabinet with CM Water Heater	InviZible Water Heater featuring CM or M Water Heater [Z-S1616D with disconnect switch; Z-S1212 no disconnect switch]		349 KB
BIM/CAD/Revit	Z-S1212 Heater in Cabinet (rfa)	InviZible® C-Micro® Thermostatic Tankless Water Heater with 0.20 GPM Activation - No Disconnect Switch	0	660 KB
BIM/CAD/Revit	Z-S1616D Heater in Cabinet (rfa)	InviZible® C-Micro® Thermostatic Tankless Water Heater with 0.20 GPM Activation and Pre-wired Disconnect Switch	0	832 KB
Brochures/Flyers	Kwik Ship® Brands: Chronomite® (pdf)	Kwik Ship® Brands: Chronomite® (pdf)	0	603 KB
Brochures/Flyers	Kwik Ship® Brands: Brochure (pdf)	Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.	0	3 MB
Brochures/Flyers	Kwik Ship® Brands: Commercial Engineering Approval Form	Kwik Ship® Brands: Commercial Engineering Approval Form	0	2 MB
Brochures/Flyers	What makes Chronomite Great Brochure (pdf)	What makes Chronomite Great Brochure (pdf)	0	8 MB
Brochures/Flyers	InviZible® Water Heater Brochure (pdf)	The Code-compliant, Concealed Electric Tankless Solution!	0	825 KB

Can't find what you are looking for? Get in touch

Shows specifications for standard configuration. Configuration options may change specifications.

Activation Flow Rate	0.20 GPM
Dimensions	13-5/8" x 13-5/8" x 3-1/4", 17-5/8" x 17-5/8" x 5-1/4"
Kilowatt Output	1.44 to 5.54
Product Features	Wall Sleeve Conceals Heater, Pre-Wired Disconnect Switch, Ultra-Low Activation Flow Rate of 0.20 GPM
Patent(s)	Patent pending

Model	Description	Downloads
-AKL	Option: Allen Key Latch	Submittal
-CL	Option: Cylinder Lock	Submittal
-SS	Option: Satin Finish Stainless Steel Housing	Submittal
SRK	Semi-Recess Spacer Kit for Z Series Water Heater Cabinet	Submittal

All heaters are single phase powered. | Low Activation Flow Rate: 0.20 Gallon per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 0.35 GPM	Temp Rise at 0.50 GPM	Temp Rise at 1.00 GPM	Temp Rise at 1.50 GPM	Temp Rise at 2.00 GPM
CM-12L/120	120	1.44	12	14 AWG	28°F	20°F	10°F	---	---
CM-15L/120	120	1.8	15	14 AWG	35°F	25°F	12°F	---	---
CM-20L/120	120	2.4	20	12 AWG	47°F	33°F	16°F	11°F	---
CM-30L/120	120	3.6	30	10 AWG	70°F	49°F	25°F	16°F	12°F
CM-12L/208	208	2.5	12	14 AWG	49°F	34°F	17°F	11°F	---
CM-15L/208	208	3.12	15	14 AWG	61°F	43°F	21°F	14°F	11°F
CM-20L/208	208	4.16	20	12 AWG	81°F	57°F	28°F	19°F	14°F
CM-30L/208	208	6.24	30	10 AWG	90°F +	85°F	43°F	28°F	21°F
CM-40L/208	208	8.32	40	8 AWG	90°F +	90°F +	57°F	38°F	28°F
CM-12L/240	240	2.88	12	14 AWG	56°F	39°F	20°F	13°F	10°F
CM-15L/240	240	3.6	15	14 AWG	70°F	49°F	25°F	16°F	12°F
CM-20L/240	240	4.8	20	12 AWG	90°F +	66°F	33°F	22°F	16°F
CM-30L/240	240	7.2	30	10 AWG	90°F +	90°F +	49°F	33°F	25°F
CM-40L/240	240	9.6	40	8 AWG	90°F +	90°F +	66°F	44°F	33°F
CM-12L/277	277	3.32	12	14 AWG	65°F	45°F	23°F	15°F	11°F
CM-15L/277	277	4.15	15	14 AWG	81°F	57°F	28°F	19°F	14°F
CM-20L/277	277	5.54	20	12 AWG	90°F +	76°F	38°F	25°F	19°F
CM-30L/277	277	8.32	30	10 AWG	90°F +	90°F +	57°F	38°F	28°F
CM-40L/277	277	11.08	40	8 AWG	90°F +	90°F +	76°F	50°F	38°F

All heaters are single phase powered. | Metric Low Activation Flow Rate: 0.75 Liters per Minute

Model	Volts	KW	Amps/Ø	90°C Wire	Temp Rise at 1.3 LPM	Temp Rise at 1.9 LPM	Temp Rise at 3.8 LPM	Temp Rise at 5.7 LPM	Temp Rise at 7.6 LPM
CM-12L/120	120	1.44	12	14 AWG	16°C	11°C	5°C	---	---
CM-15L/120	120	1.8	15	14 AWG	20°C	14°C	7°C	---	---
CM-20L/120	120	2.4	20	12 AWG	26°C	18°C	9°C	6°C	---
CM-30L/120	120	3.6	30	10 AWG	39°C	27°C	14°C	9°C	7°C
CM-12L/208	208	2.5	12	14 AWG	27°C	19°C	9°C	6°C	---
CM-15L/208	208	3.12	15	14 AWG	34°C	24°C	12°C	8°C	6°C
CM-20L/208	208	4.16	20	12 AWG	45°C	32°C	16°C	11°C	8°C
CM-30L/208	208	6.24	30	10 AWG	50°C+	47°C	24°C	16°C	12°C
CM-40L/208	208	8.32	40	8 AWG	50°C+	50°C+	32°C	21°C	16°C
CM-12L/240	240	2.88	12	14 AWG	31°C	22°C	11°C	7°C	5°C
CM-15L/240	240	3.6	15	14 AWG	39°C	27°C	14°C	9°C	7°C
CM-20L/240	240	4.8	20	12 AWG	50°C+	36°C	18°C	12°C	9°C
CM-30L/240	240	7.2	30	10 AWG	50°C+	50°C+	27°C	18°C	14°C
CM-40L/240	240	9.6	40	8 AWG	50°C+	50°C+	36°C	24°C	18°C
CM-12L/277	277	3.32	12	14 AWG	36°C	25°C	13°C	8°C	6°C
CM-15L/277	277	4.15	15	14 AWG	45°C	31°C	16°C	10°C	8°C
CM-20L/277	277	5.54	20	12 AWG	50°C+	42°C	21°C	14°C	11°C
CM-30L/277	277	8.32	30	10 AWG	50°C+	50°C+	32°C	21°C	16°C
CM-40L/277	277	11.08	40	8 AWG	50°C+	50°C+	40°C	27°C	20°C

Z-S1616D

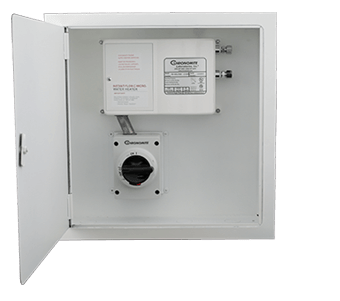

Z-S1616D with CM Series Tankless Water Heater 2095-1 Disconnect Switch Door Opening 16" x 16" (406 mm x 406 mm) Accessory -SRK available

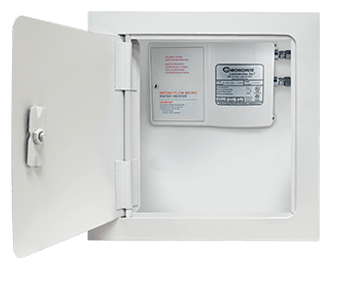

Z-S1212

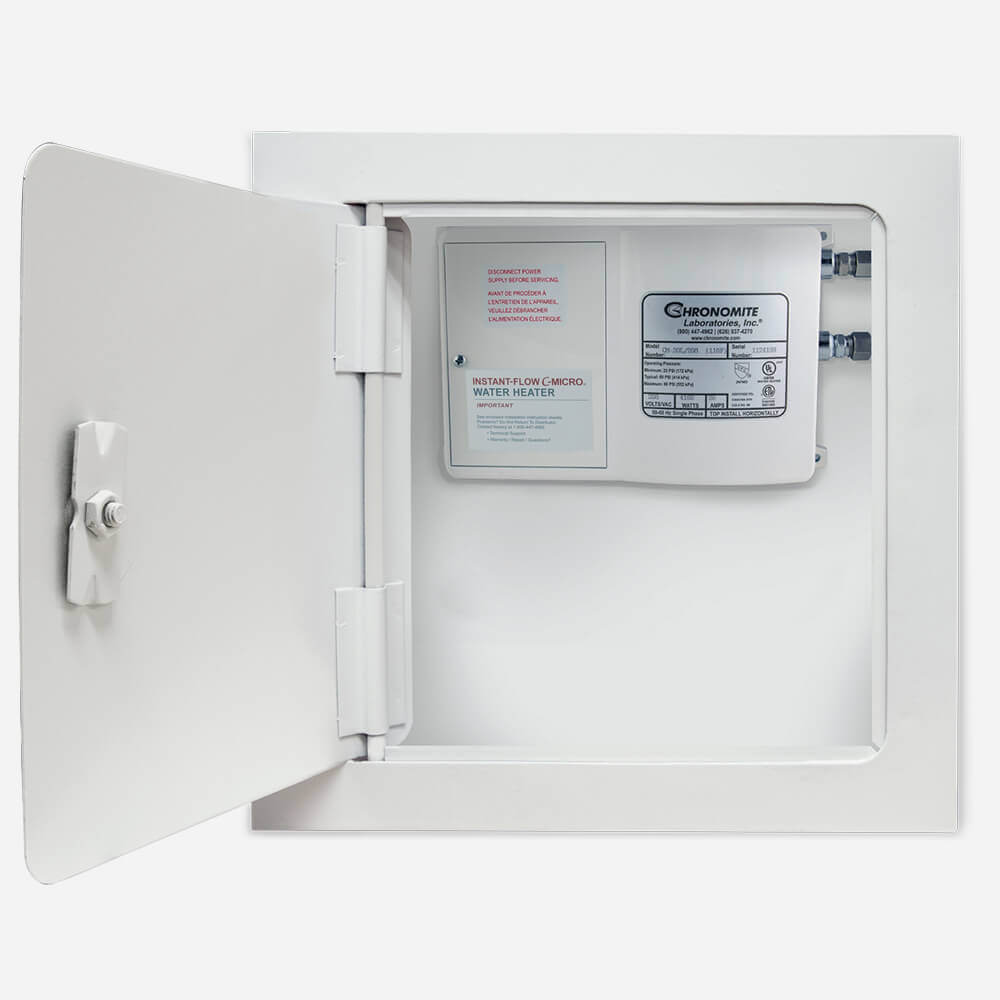

Z-S1212 with CM Series Tankless Water Heater Door Opening 12" x 12" (305 mm x 305 mm)
